Sand Blending Truck: Mixing Sand and Frac Fluid for the Frac Spread

A sand blending truck (or sand blender) is a critical piece of the fracturing spread. It mixes proppant (frac sand) with the fracturing fluid, creating a homogeneous slurry that the frac pumps deliver to the well. Without the blender, you can't deliver proppant downhole. It's the heart of the fluid preparation side of a frac operation.

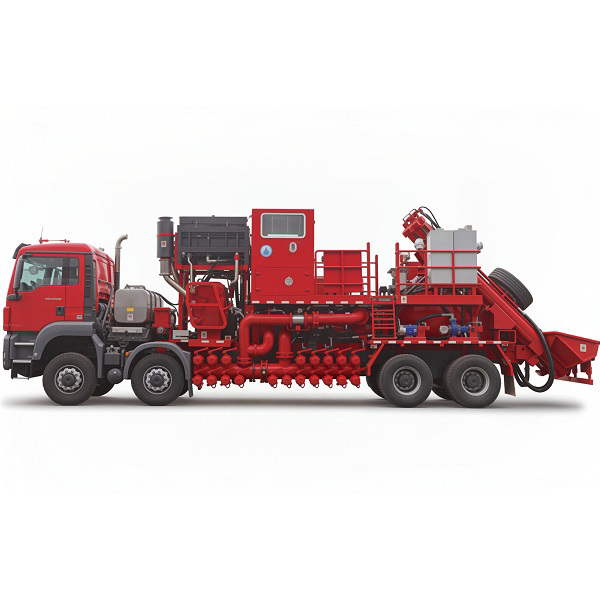

Sand blending truck fracturing blender

How the Sand Blending Truck Works

The blender combines proppant and fluid in a controlled process:

  • Proppant delivery: Sand from the sand silos or sand conveyors is delivered to the blender by a sand screw or conveyor belt.
  • Fluid mixing: Fracturing fluid (water + chemicals) is prepared in the blending tub. The fluid is continuously agitated to maintain homogeneity.
  • Proppant mixing: Sand is metered into the blending tub at a controlled rate. The agitator keeps the sand suspended and evenly distributed in the fluid.
  • Delivery: The blended slurry (sand + fluid) is pumped from the blender to the suction side of the frac pumps. The frac pumps then deliver it at high pressure to the well.
  • Density control: The blender continuously monitors slurry density and adjusts sand feed rate to maintain the target proppant concentration.

The blender sits between the sand delivery system and the frac pumps. It's the critical link that ensures the right sand concentration reaches the well.

Key Components of a Sand Blending Truck

Blending Tub

The large mixing vessel where proppant and fluid are combined. Designed for continuous flow with baffles and agitators to ensure thorough mixing. Capacity typically 2-5 m³.

Sand Metering System

A variable-speed sand screw or belt conveyor that controls the rate at which sand is added to the tub. The metering system ensures precise proppant concentration in the slurry.

High-Shear Pump

A centrifugal or positive displacement pump that takes the blended slurry from the tub and delivers it to the frac pumps' suction side. Provides adequate supply pressure to the frac pumps.

Control System

Central control panel with density readout, sand rate display, flow rate monitoring and alarm functions. The blender operator adjusts parameters from this panel.

Typical Specifications

Parameter Typical Range
Blending rate 20 - 80 m³/min (5,000 - 20,000 gpm)
Proppant concentration 0.5 - 12 kg/L (2 - 10 ppa)
Tub capacity 2 - 5 m³ (500 - 1,300 gallons)
Engine power 300 - 600 HP (diesel)
Mounting Truck mounted (heavy duty chassis)
Weight 20 - 35 tons (truck + blender)

Frequently Asked Questions

What's the difference between a sand blender and a frac pump?

The sand blender mixes proppant with fluid to create the slurry. The frac pump takes that slurry and pressurizes it to high pressure for injection into the well. The blender handles low-pressure fluid preparation; the frac pump handles high-pressure injection. They work together: blender -> frac pump -> wellhead. Without the blender, the frac pump has no slurry to pump.

How many blenders do I need for a frac spread?

A typical onshore frac spread uses 1-2 sand blenders. One blender is sufficient for most operations. Two blenders provide redundancy and higher capacity for large jobs. The number depends on your total fluid rate requirement. If you need 50 m³/min total blending capacity, one high-volume blender or two standard blenders will do the job. Our engineering team can help you size the blender fleet based on your well design.

What maintenance does a sand blending truck need?

Regular maintenance includes: inspect and clean the blending tub, check sand screw conveyor for wear, lubricate bearings and agitator seals, inspect high-shear pump for wear, check engine oil and filters, and calibrate density instrumentation. The blender handles abrasive sand slurry, so wear parts (pump seals, impellers, liners) need periodic replacement. Keep a maintenance log and replace worn components before they cause failures.
