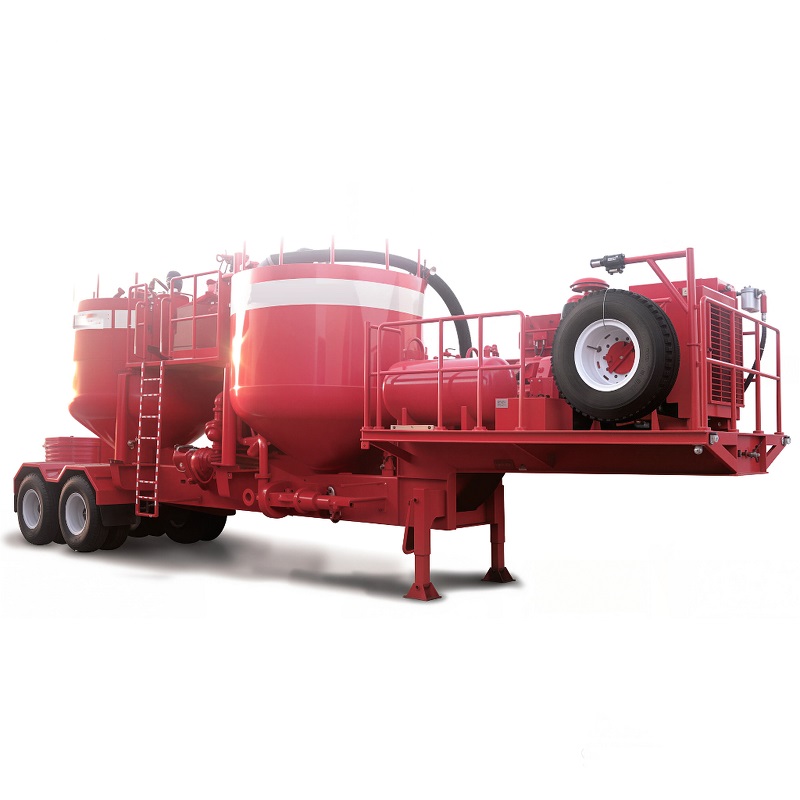

Batch Mixer Trailer: Mobile Cement Mixing for Remote Sites
A trailer mounted batch mixer carries the mixing tank, agitation system, water supply and power unit on a road-legal trailer chassis. It is towed by a standard truck tractor to the well site. This configuration is lighter and less expensive than a truck-mounted mixer, and gives you flexibility to use your existing tractor fleet.
When to Choose a Trailer Mounted Mixer
Trailer mounted batch mixers are a good fit when:
- You already have truck tractors in your fleet and want to avoid buying a dedicated mixer truck
- You need to move the mixer between well sites frequently —a trailer is faster to hook up and go
- Road weight limits are a concern —trailer mounted units are lighter than truck mounted units
- You have limited capital but need a mobile mixing solution
- The well site has tight access where a shorter, more maneuverable trailer is preferred
If you want a fully self-contained unit with the mixer and pump on one chassis, look at a truck mounted cementing unit instead. The trailer mixer is the more economical, flexible option.
Typical Specifications
| Parameter | Typical Range |
|---|---|
| Mixing tank capacity | 3 - 6 m³ (single or double compartment) |
| Mixing rate | 1 - 3 m³ per batch, 5 - 15 batches/hour |
| Agitation system | Mechanical agitator + mud hopper |
| Water tank | 1 - 3 m³ integrated |
| Power unit | Diesel engine, 80 - 150 HP |
| Trailer chassis | 2- or 3-axle, road legal, air brakes |
Frequently Asked Questions
What kind of tractor do I need to tow the mixer trailer?
A standard heavy-duty truck tractor (semi tractor) with a fifth wheel coupling is sufficient. The trailer's gross weight is typically 12-18 tons, well within the towing capacity of most oilfield tractors. Make sure the tractor has an air brake connection and appropriate electrical hookup for trailer lights.
Can the trailer mixer pair with our existing cementing pump?
Yes. The trailer mixer provides mixed slurry to the suction side of your cementing pump. A flexible hose connects the mixer discharge to the pump suction. As long as your pump can handle the flow rate and has the appropriate suction connection, the trailer mixer will work with it. We can also supply matching suction hoses and fittings.
How does a trailer mixer compare to a truck mounted mixer?
A truck mounted mixer has the mixing system on a self-propelled truck chassis —it is more expensive but fully self-contained. A trailer mixer is towed by a separate tractor —it is lighter, less expensive, and more flexible (you can use different tractors). The mixing performance is essentially the same. Choose truck mounted if you want maximum self-containment; choose trailer if you want flexibility and lower cost.
Need a Trailer Mounted Batch Mixer?
Tell us your required mixing capacity and preferred trailer axle configuration. Our engineering team will recommend the right mixer and provide a quote within 48 hours.
