Skid-Mounted | Offshore & Permanent Installation

Skid Mounted Batch Mixer for Offshore & Fixed Wellsite Cement Slurry

A skid mounted batch mixer is designed for permanent installation on offshore platforms, drilling rigs or permanent wellsites. It consolidates all mixing functions on a single steel frame, optimized for space constraints and connected to platform utilities.

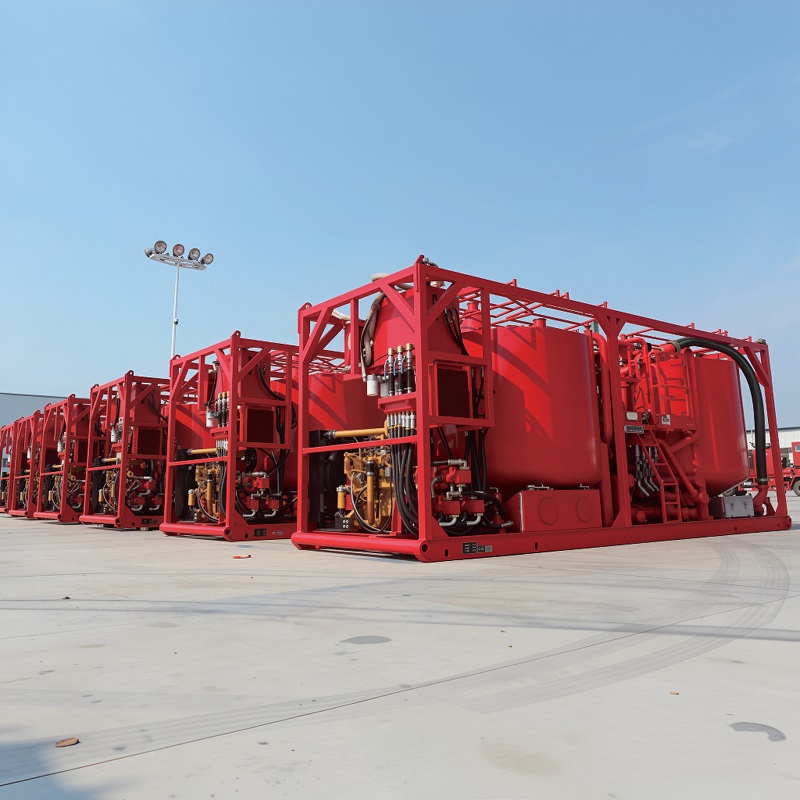

Skid mounted batch mixer for offshore platform

Why Use a Skid Mounted Batch Mixer?

Skid-mounted batch mixers are the preferred choice when mobility is not required and space or emission constraints favor a fixed installation. Here are the key advantages:

Compact Platform Footprint

On offshore platforms, every square meter costs money. A skid mixer eliminates the truck cab and chassis, freeing up valuable deck space. All components are arranged for optimal space utilization.

Integrated with Platform Utilities

Skid mixers connect directly to the platform's power supply, water system and control network. No need for a separate diesel engine or on-board water tank —the platform provides these utilities.

Zero On-Site Emissions

Electric-driven skid mixers produce zero exhaust emissions. This is critical on offshore platforms where ventilation is limited, and in environmentally sensitive onshore locations.

Permanent Installation

Once installed, the skid mixer is bolted down and connected. It is always ready for use —no need to mobilize a truck to the location. This is ideal for permanent drilling locations or frequent workover wellsites.

Skid Batch Mixer Specifications

Our skid-mounted batch mixers are available in 1.6 m³, 2.0 m³ and 3.0 m³ batch volumes, with both electric and diesel drive options.

Model Batch Volume Drive Type Density Accuracy Lifting Rating
SHJC16 Skid 1.6 m³ (1600 L) Electric VFD / Diesel ± 0.02 g/cm³ DNV certified
SHJC20 Skid 2.0 m³ (2000 L) Electric VFD / Diesel ± 0.02 g/cm³ DNV certified
SHJC30 Skid 3.0 m³ (3000 L) Electric VFD (dual motor) ± 0.01 g/cm³ DNV certified

Where Are Skid Batch Mixers Installed?

Skid mounted batch mixers are deployed in a variety of permanent installation scenarios:

Offshore Drilling Platforms

Electric-driven skid mixers are standard on offshore drilling platforms. They integrate with the platform's mud system and central cementing unit. DNV certification is required for lifting and installation.

Drillships & Semi-Submersibles

On floating drilling units, skid mixers must meet strict weight, stability and vibration requirements. We provide detailed weight distribution and center of gravity data for your naval architect.

Permanent Onshore Drilling Sites

In remote desert or arctic locations with permanent drilling infrastructure, skid mixers are installed in a dedicated cementing bay. They connect to bulk cement silos and central water systems.

Well Servicing Yards

Service company workshops and well servicing yards use skid mixers for batch preparation. The skid can be installed inside a building for climate control and dust control.

Engineering Design Features of Our Skid Mixers

DNV Certified Lifting Lugs

Every skid includes four DNV-certified lifting lugs. We provide detailed lifting plans, center of gravity calculations and rigging diagrams for your installation engineer.

Stainless Steel Wetted Parts

For offshore service, all wetted parts (tub, piping, pump internals) are 316L stainless steel. This prevents corrosion from saltwater exposure and extends equipment life.

Modular Deisgn

The skid is split into transportable modules (mixing tub, pump module, control cabinet). Each module fits through standard platform access hatches for installation and maintenance.

Platform Interface Documentation

We provide full interface documentation: power requirements, control signals, water connections, discharge line size and ventilation requirements. Your platform engineer reviews these before fabrication.

ATEX / Zone 2 Rated

For hazardous area installations, we provide ATEX Zone 2 rated electrical components, explosion-proof enclosures and intrinsically safe instrument systems.

Corrosion Protection

Offshore-rated units include epoxy coating, cathodic protection and stainless steel fasteners. Designed for 20+ years of saltwater exposure.

Frequently Asked Questions About Skid Mounted Batch Mixers

What is the weight of a typical skid mounted batch mixer?

A 1.6 m³ skid batch mixer weighs approximately 4-6 tonnes dry. The lifting lugs are designed for this weight plus a 1.5x safety factor. We provide detailed weight breakdown by module for your installation planning.

Can I add a truck to a skid mixer later?

Technically yes, but it is rarely cost-effective. The mixing system itself is the same; the difference is the frame and integration. If you need both mobility and fixed installation, we recommend a trailer-mounted unit —it provides road mobility and can be parked and connected like a skid.

What power supply do I need for an electric skid mixer?

A typical 1.6 m³ electric skid mixer requires 440V/3-phase/60Hz or 380V/3-phase/50Hz power supply, with a connected load of approximately 30-45 kW. We provide detailed electrical drawings and harmonic analysis for your platform electrical engineer.

Do you provide on-site installation supervision?

Yes. Our field service engineers can travel to your platform or wellsite to supervise installation, commissioning and operator training. This service is available for international projects; travel costs are quoted separately.

What is the lead time for a custom offshore skid mixer?

Standard skid mixers take approximately 5-6 months. Offshore-rated custom units with DNV certification, stainless steel wetted parts and ATEX rating typically require 8-10 months from order confirmation to delivery.

Planning a Skid Batch Mixer for Your Platform or Wellsite?

Send us your platform layout, power availability and batch volume requirements. Our engineering team will provide a 3D layout proposal and detailed quotation within 5 working days.
