Self-Contained | Base Frame | Process Package

Pump Skid: A Complete Pumping Package on One Frame

A pump skid is a complete pumping package mounted on a common steel base frame (skid). It includes the pump, driver (electric motor or diesel engine), baseplate, inlet/outlet piping, valves, instrumentation and controls. Everything you need to connect suction and discharge hoses and start pumping —delivered as one unit.

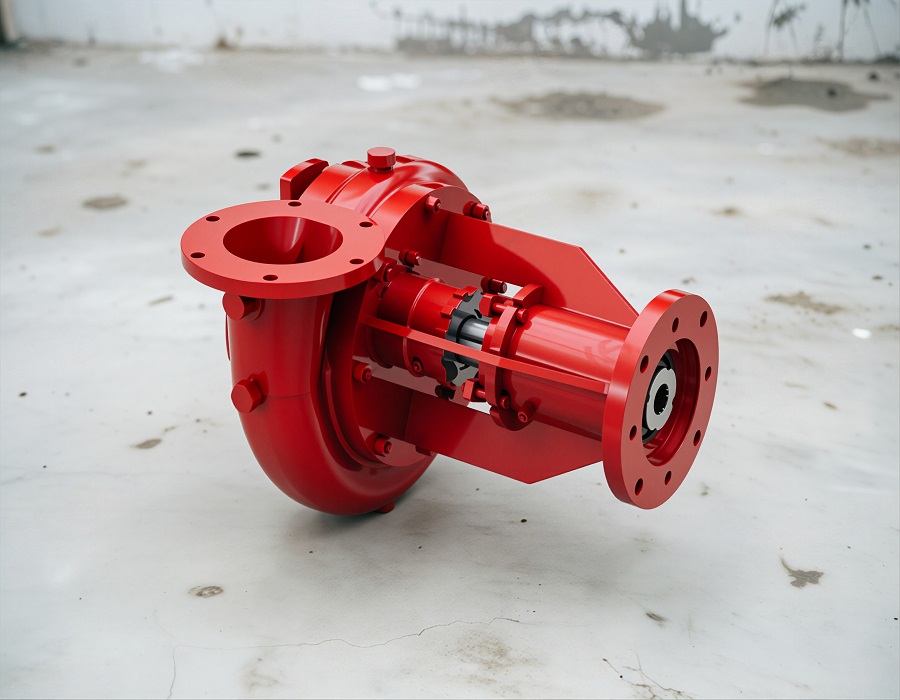

Pump skid skid mounted pump unit

What's Included in a Pump Skid Package

A complete pump skid package typically includes:

  • Pump: Reciprocating plunger pump (high pressure) or centrifugal pump (high flow, low pressure)
  • Driver: Electric motor with VFD, or diesel engine for remote locations
  • Base frame: Structural steel skid with lifting lugs and fork pockets
  • Piping: Suction and discharge piping with valves and flanges
  • Instrumentation: Pressure gauges, temperature sensors, vibration sensors
  • Controls: Local control panel with start/stop, pressure control, safety shutdown

Some pump skids also include: pulsation dampeners, suction stabilizers, filtration systems, VFD enclosures, and fuel tanks (for diesel drive). The exact contents depend on the application and your requirements.

Common Applications

Water Injection

High pressure plunger pump skids for water injection wells. Used to maintain reservoir pressure and improve oil recovery. Typically 20-50 MPa discharge pressure, multi-pump battery arrangement.

Crude Oil Transfer

Centrifugal or reciprocating pump skids for crude oil pipeline transfer. Used in gathering systems, tank farms and loading terminals. Flow rates from 50 to 2000 m³/hour.

Well Testing

High pressure pump skids for well testing and choke manifold service. Used to control well flow during testing and cleanout operations. 35-70 MPa working pressure.

Process Service

Pump skids for process plant service: chemical injection, condensate transfer, produced water handling. Customized to process requirements (API, NACE, etc.).

Typical Specifications

Parameter Typical Range
Pump type Reciprocating plunger / centrifugal / screw pump
Working pressure 1 - 70 MPa (varies by pump type and application)
Flow rate 1 - 2000 m³/hour (varies by application)
Driver Electric motor (VFD) or diesel engine
Power 15 - 1000 kW
Skid dimensions 2-8 m long, 1.5-3 m wide (modular, transportable)

Frequently Asked Questions

What is the difference between a pump skid and a pump package?

They're essentially the same thing —a pump skid is a type of pump package. "Pump skid" emphasizes the base frame and self-contained design. "Pump package" is a broader term that can include skid-mounted, tank-mounted, or containerized pump systems. In practice, the terms are often used interchangeably. The key point is that everything comes pre-assembled on a frame —you just connect suction, discharge and power, and it's ready to run.

How do I specify a pump skid for my application?

You need to provide: fluid properties (viscosity, specific gravity, abrasiveness, corrosiveness), required flow rate and pressure, suction conditions (pressure, temperature), power availability (electric voltage, diesel fuel), environmental conditions (temperature range, outdoor/indoor, hazardous area classification), and any industry standards required (API, NACE, etc.). With this information, we can specify the pump type, size, driver, materials of construction and control requirements.

Can pump skids be containerized for overseas shipping?

Yes. Many pump skids are designed to fit inside standard shipping containers (20ft or 40ft). The skid dimensions are optimized for container loading. This is especially important for export orders where shipping cost and ease of transport are critical. We can design the skid to fit your chosen container size and provide all necessary lifting and lashing points for ocean transport.
