Skid-Mounted | Offshore & Permanent Wellsite

Skid Mounted Cementing Unit for Offshore & Fixed Wellsite Operations

A skid mounted cementing unit consolidates pump, mixing system and controls onto a single steel frame. It is designed for installation on offshore platforms, drilling rig mud pits and permanent wellsites where road mobility is not required.

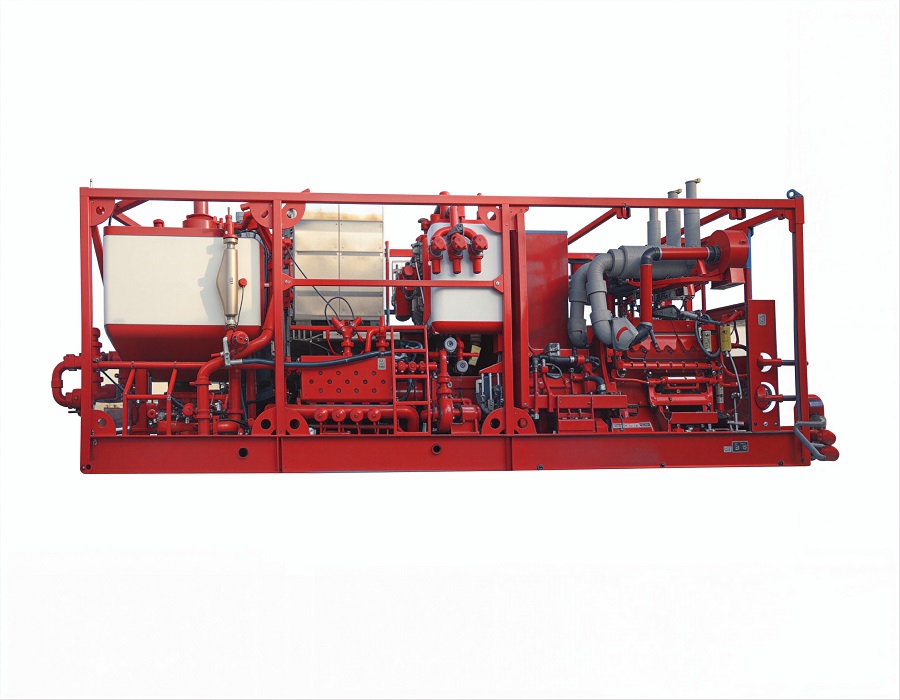

Skid mounted cementing unit for offshore platform

Skid-Mounted vs Truck-Mounted Cementing: Which Is Right for You?

The choice between a skid unit and a truck unit depends on your operating location, mobility requirements and space constraints. Here is a direct comparison:

Factor Skid-Mounted Unit Truck-Mounted Unit
Primary Use Case Offshore platform, permanent wellsites, drilling rig integration Mobile onshore operations, multi-well locations, workover fleets
Mobility Requires crane for lifting, not road-mobile Self-propelled, road-ready between locations
Footprint Compact, optimized for platform space constraints Larger, includes chassis and cab
Drive Options Electric motor (VFD) preferred for offshore/zero-emission sites Diesel engine (Cummins/Weichai) standard
Installation Bolted down to deck or foundation, connected to utilities Drive-on, connect hoses and power, ready to work
Cost Lower than truck (no chassis/cab cost) Higher (includes truck chassis and licensing)
Best For Offshore rigs, desert camps, remote permanent fields Contractor fleets, multi-well pads, mobile workover

Skid Mounted Cementing Unit Specifications

Our skid-mounted cementing lineup covers pressure ratings from 15 MPa to 38 MPa, with both diesel and electric drive options. All units include DNV-rated lifting lugs for offshore installation.

Model Working Pressure Max Displacement Drive Type Typical Application
SGJ600 Skid 21 MPa (3,045 psi) 2.6 m³/min Diesel / Electric VFD Platform cementing, medium-depth wells
SGJ1000 Skid 21 MPa (3,045 psi) 2.6 m³/min Diesel / Electric VFD Deep well cementing on fixed rig
SGJ1600 Skid 28 MPa (4,060 psi) 2.8 m³/min Electric VFD preferred HPHT wells, offshore deepwater
SGJ2500 Skid 38 MPa (5,510 psi) 3.2 m³/min High-power electric / diesel Ultra-deep, sour service offshore
SHJC16 Batch Mixer Skid —/td> 1.6 m³ batch volume Electric / Diesel Continuous slurry preparation on platform

Where Are Skid Mounted Cementing Units Used?

Skid-mounted cementing units are preferred in locations where mobility is not required and space or emission constraints favor a fixed installation.

Offshore Platforms

Electric-driven skid units are standard on offshore drilling platforms. They eliminate diesel exhaust, reduce deck footprint and integrate with the platform's central power and control systems.

Deepwater Drilling Rigs

On semi-submersible and drillship rigs, high-pressure skid cementing units are installed in the mud pit area. They must meet strict DNV lifting and stability requirements.

Permanent Onshore Wellsites

In mature oilfields with fixed infrastructure, skid units are bolted to concrete foundations. They serve multiple wells from a central cementing station.

Environmentally Sensitive Areas

Electric VFD skid units produce zero on-site emissions, making them suitable for nature reserves, urban proximity projects and low-emission regulatory zones.

Engineering Advantages of Our Skid Cementing Units

Compact Deck Layout

All components are arranged to minimize platform footprint. We provide 3D layout drawings and interface drawings before fabrication starts.

DNV-Compliant Lifting

Every skid includes DNV-certified lifting lugs and a center of gravity calculation, essential for offshore crane installation.

Electric Drive Ready

Our VFD electric drive skid units integrate with platform power systems. We provide motor sizing, harmonic analysis and control interface documentation.

Modular Design

Pump module, mixing module and control module are separate skids that can be transported and installed independently.

Corrosion Protection

For offshore service, we provide epoxy coating, stainless steel piping and cathodic protection options for long-term saltwater exposure.

Factory Acceptance Testing

Each skid unit undergoes a full pressure hold test, functional test and electrical integration test before shipment. Your inspection team is welcome to witness FAT.

Frequently Asked Questions About Skid Mounted Cementing Units

What lifting capacity do I need to install a skid cementing unit on my platform?

A typical 21 MPa skid cementing unit weighs between 12 and 18 tonnes depending on configuration. The lifting lugs are designed for this weight plus a 1.5x safety factor. We provide detailed lifting plans, center of gravity data and rigging diagrams for your installation engineer.

Can a skid unit be converted back to truck-mounted later?

Technically yes, but it is rarely cost-effective. The pump, mixing system and control cabinet are the same; the difference is the frame and integration with chassis systems. If you need both mobility and fixed installation, we recommend a trailer-mounted unit —it provides road mobility and can be parked and connected like a skid unit.

Do you offer electric drive skid units for offshore platforms?

Yes. Our VFD (variable frequency drive) electric skid units are designed for offshore use. They connect to the platform's 440V or 690V power system, produce zero on-site emissions and integrate with the platform's central control network. We provide full electrical documentation and harmonic analysis on request.

How do I connect a skid unit to my platform utilities?

We provide interface drawings showing all connection points: power supply, control signals, water supply, discharge line, ventilation and drainage. Your platform engineer reviews these before fabrication to ensure compatibility with your existing systems.

What is the lead time for a custom offshore skid cementing unit?

Standard skid units take approximately 6–8 months. Offshore-rated custom units with DNV certification, special materials or electric drive typically require 9–12 months from order confirmation to delivery, including engineering design, fabrication, FAT and shipping.

Planning a Skid Mounted Cementing Unit for Your Project?

Send us your platform layout, power availability and pressure requirements. Our engineering team will provide a 3D layout proposal and detailed quotation within 5 working days.
