70 MPa | 105 MPa | Heavy-Duty Fluid Ends

High Pressure Pump Unit: Built for 70 MPa and Beyond

Not all pumps are equal. A 7 MPa transfer pump and a 105 MPa fracturing pump are in completely different leagues. High pressure pumping —from 35 MPa cementing pumps to 105 MPa fracturing pumps —demands heavy-duty fluid ends, precision sealing, robust power ends, and safety systems that can contain extreme pressure. When failure means injury or equipment damage, you don't buy a "pump" —you buy a high pressure pumping system engineered for the job. We design and manufacture high pressure pump units for the most demanding oilfield applications: fracturing, cementing, pressure testing, and high-rate well stimulation.

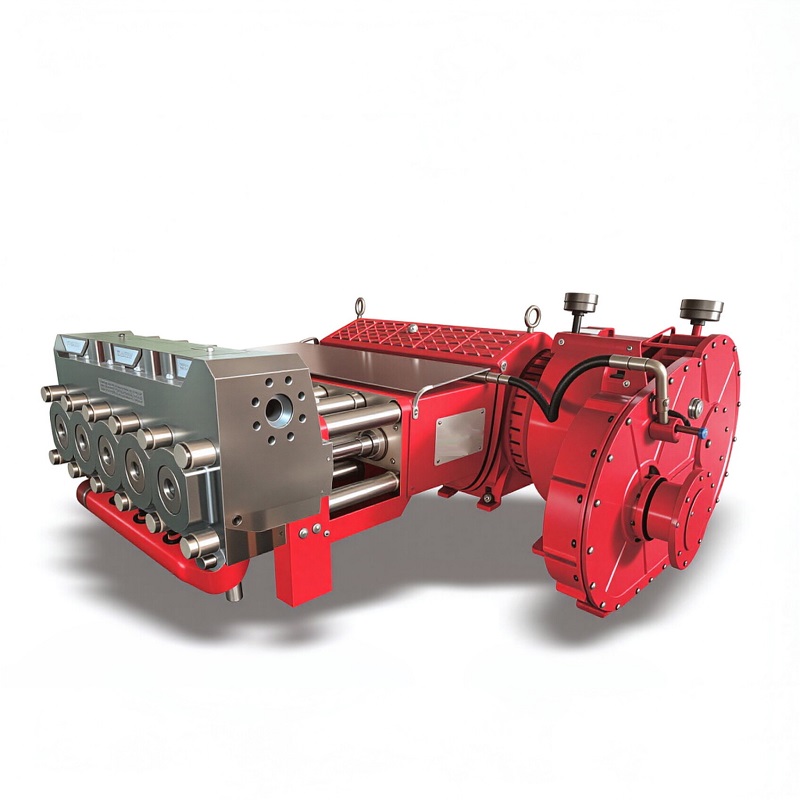

High pressure pump unit for fracturing and cementing

High Pressure Pump Applications

Application Typical Pressure Typical Flow Rate Pump Type
Cementing 35–70 MPa 1–3 m³/min Triplex plunger pump
Hydraulic Fracturing 70–105 MPa 2–5 m³/min Triplex / quintuplex pump
Pressure Testing 70–105 MPa Low volume Triplex plunger pump
Well Killing / Squeeze 35–70 MPa 0.5–2 m³/min Triplex plunger pump

What Makes a High Pressure Pump Different?

Heavy-Duty Fluid End

The fluid end contains the high-pressure fluid. It must be forged or cast from high-strength alloy steel, with precision-machined bores, threaded connections, and sealing surfaces. High pressure fluid ends are heavy —a 105 MPa fluid end can weigh several tonnes.

Precision Sealing System

At 70-105 MPa, any seal leak is dangerous. Plunger packing, valve seats, and gaskets must be precision-matched to the pressure rating. High pressure pumps use multi-stage packing systems with tungsten carbide plungers and hardened valve seats.

Robust Power End

The power end converts rotary power to reciprocating motion. At high pressure, the loads on crankshafts, connecting rods, and bearings are extreme. High pressure pump power ends are built with oversized bearings, forged crankshafts, and heavy-duty housing.

Safety Systems

High pressure pumps have safety relief valves, pressure gauges, and (on modern units) electronic pressure control. Overpressure protection is mandatory. Operators must be trained in high pressure safety procedures.

Frequently Asked Questions

What's the maximum pressure your pump units can handle?

Our standard high pressure pump units are rated for 70 MPa (10,000 psi). For fracturing service, we offer 105 MPa (15,000 psi) rated pumps. Custom configurations for higher pressure are possible —tell us your pressure requirement, and we'll specify the right pump. Pressure rating is matched to your application, not the other way around.

Triplex or quintuplex pump —which should I choose?

Triplex pumps (3 plungers) are simpler, easier to maintain, and handle abrasive fluids better. Quintuplex pumps (5 plungers) deliver higher flow rate with smoother flow pulsation. For high-rate fracturing, quintuplex is common. For cementing and general high pressure service, triplex is the standard. Tell us your flow requirements, and we'll recommend the right configuration.

How long does a high pressure pump fluid end last?

Fluid end life depends on fluid type, pressure, and flow rate. With abrasive cement slurry or proppant-laden fracturing fluid, valve seats and plunger packing need regular replacement (every few weeks of intensive use). Non-abrasive fluids (water-based pressure testing) can run much longer. We provide recommended spare parts lists (RSPL) and wear component kits for your specific application.

Need a High Pressure Pump You Can Trust?

Tell us your pressure requirement, flow rate, and fluid type. We'll design and build a high pressure pump unit engineered for your specific application —with heavy-duty fluid ends, reliable sealing, and safety systems built in.
