Workover Rig for Well Repair: Restoring Production

A workover rig is the standard piece of equipment for well repair and intervention operations. When a producing well starts to decline, develops mechanical problems, or needs remedial work, the workover rig moves in to pull the tubing, inspect the well, and perform repairs. It's the workhorse of well servicing.

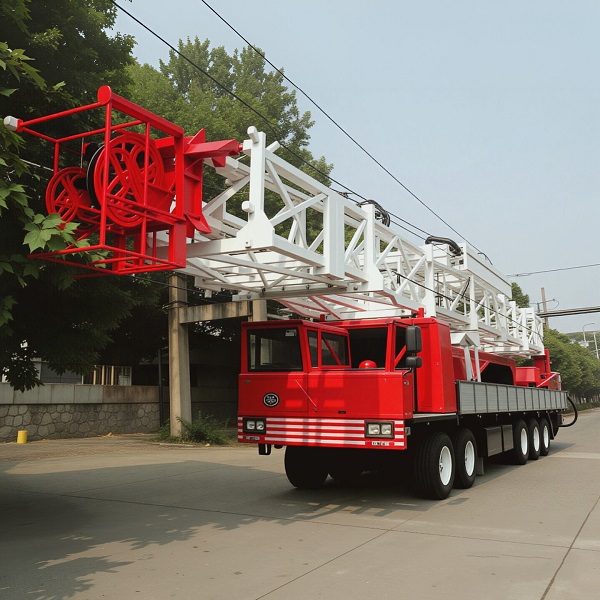

Workover rig performing well repair operation

What Is a Workover Rig Used For?

Workover rigs perform a wide range of well repair and intervention tasks:

  • Pulling tubing: Removing production tubing from the well to inspect or replace downhole equipment
  • Running completions: Installing new completion strings (liners, screens, packsers) in the well
  • Pump changes: Pulling and replacing downhole pumps (rod pumps, ESPs, gas lift valves)
  • Sidetracking: Side-tracking the wellbore to reach new reservoir zones
  • Plug and abandonment: Plugging the well with cement for decommissioning
  • Production logging: Running logging tools to diagnose production problems

Workover is different from drilling. Drilling creates a new well. Workover repairs or modifies an existing well. Workover rigs are smaller, faster to mobilize, and less expensive than drilling rigs.

Workover Rig vs Drilling Rig

Feature Workover Rig Drilling Rig
Purpose Repair existing wells Drill new wells
Lifting capacity 50 - 300 tons 250 - 1000+ tons
Mobility High —truck mounted, fast move Low —large, slow to move
Depth range 1000 - 6000 m 2000 - 10000+ m
Typical duration Days to weeks Weeks to months
Cost Lower Higher

Types of Workover Rigs

Truck Mounted Workover Rig

The most common type. Mounted on a heavy duty truck chassis for rapid road mobility. Ideal for service companies that need to move between well sites daily. Quick setup and teardown. Available in various capacities from 50 to 300 tons.

Skid Mounted Workover Rig

Mounted on a skid base for permanent or semi-permanent installation. Used on offshore platforms or at well sites where mobility isn't needed. More stable for heavy lifting operations. Can be electric or diesel driven.

Electric Drive Workover Rig

Uses an electric motor with VFD instead of a diesel engine. Quieter, cleaner and more energy efficient. Requires a power supply —grid power or generator. Popular in environmentally sensitive areas or where power is available.

Coiled Tubing Unit

Technically a type of workover equipment. Uses coiled tubing to perform interventions without pulling the completion string. Faster and less disruptive than conventional workover. Ideal for well cleanout, logging and stimulation.

Frequently Asked Questions

How much does a workover rig cost per day?

Workover rig day rates vary by rig size, location and market conditions. A typical 100-ton truck mounted workover rig runs $5,000-$15,000 per day. Larger rigs (200+ tons) cost $15,000-$30,000 per day. The day rate includes the rig, crew and basic consumables. Additional costs (tubing, fluids, logging) are charged separately. Contact us for a specific quote based on your well and work scope.

How long does a typical workover job take?

A simple workover (pulling tubing, changing a pump) takes 1-3 days. A more complex workover (running a new completion, sidetracking) takes 1-4 weeks. The duration depends on the well depth, the work scope, and any unexpected issues encountered. Planning for 2-5 days for a typical well repair is reasonable. Always add contingency time for surprises —downhole conditions are unpredictable.

What is the difference between workover and well servicing?

They're often used interchangeably, but there's a subtle difference. "Well servicing" is the broader term that includes all well maintenance and intervention activities. "Workover" specifically refers to the more involved interventions that require pulling tubing —like pump changes, completion replacements, and well repairs. Routine well maintenance (chemical treatments, gauge changing) is usually called "well servicing" but not "workover."
