API 8C | Matched Assembly | Ready to Run

Block and Hook Assembly: The Combined Heart of the Hoisting System

The traveling block and the hook are two separate pieces of equipment, but they work as one —the block carries the weight, the hook suspends the drill string. When you buy them as a matched assembly, you get the right combination of sheave count, pin size, pin length and load rating. No guessing if the hook will bolt onto the block. No measuring if the pin diameter matches. Just lift it onto the rig, thread the drilling line, and you're running. That's the value of a block and hook assembly: it's engineered to work together, not just bolt together.

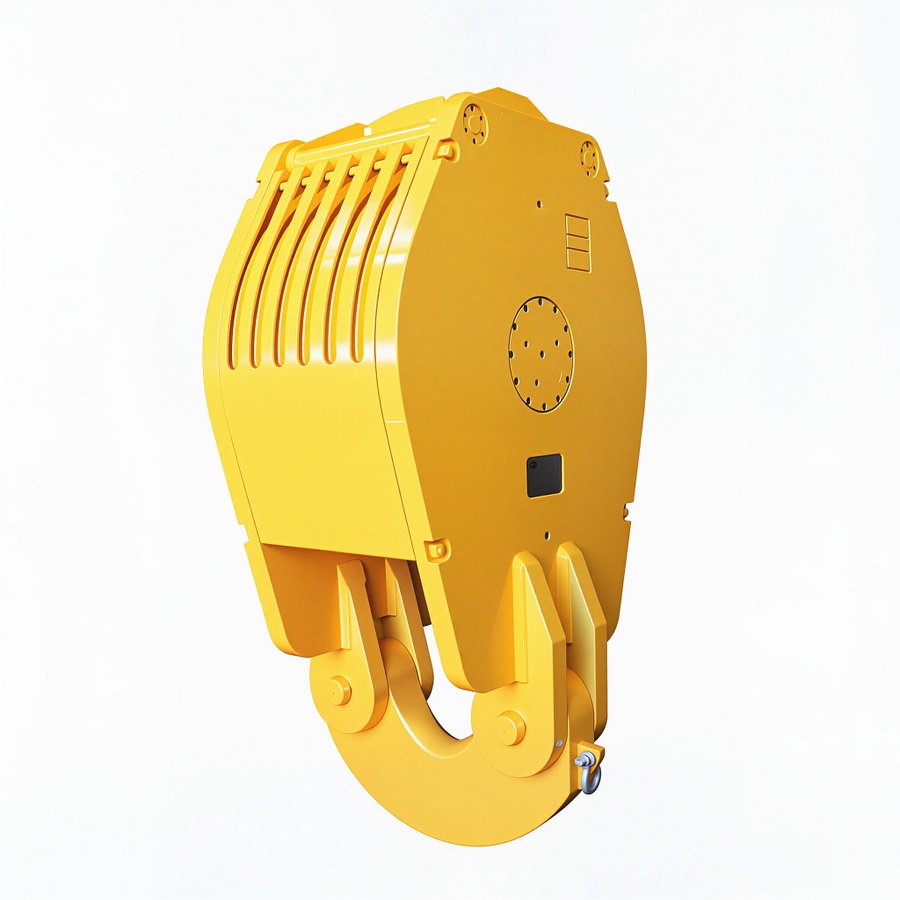

Traveling block and hook assembly on drilling rig

What's Included in a Complete Assembly

When you order a block and hook assembly, you're getting more than just two pieces bolted together:

Traveling Block

The set of sheaves that travels up and down the mast. Number of sheaves matches the crown block. Usually 4 to 6 sheaves for land rigs. API 8C certified.

Hook

Suspended below the block. Latch mechanism for the swivel bail. Safety latch to prevent accidental release. Load rated to match the block.

Connecting Pin & Hardware

The pin that connects the hook to the block body, plus all nuts, bolts and retaining hardware. Precision-machined for a tight fit. Included with the assembly.

Spare Parts Kit

Backup latch springs, retaining rings and wear parts. Enough to get you through the first few years of operation without ordering special parts.

Why Buy as an Assembly Instead of Separately

  • Perfect Fit: The block and hook are designed together. The pin hole diameter, pin length and mounting face are engineered to match. Buy separately and you might find the hook is 5mm too wide, or the pin doesn't go all the way through.
  • Matched Load Rating: The block rating and hook rating are the same number. You don't have to worry if the hook is the weak link in the system. The whole assembly is rated to the same safe working load.
  • Single Certification: One API 8C certificate covers the whole assembly. Auditors and inspectors see one document, not two. Simpler for your rig inspection documentation.
  • Faster Delivery: We keep common assemblies in stock. A matched block and hook can ship in days, not weeks. If you order separately, you might wait for one component while the other sits on the shelf.
  • Service Support: If there's a problem, you call one number. No "the block is from us, the hook is from them" finger-pointing.

Typical Block and Hook Assembly Ratings

Assembly Rating Number of Sheaves Hook Type Typical Rig Class
150 tonnes 4 sheaves Single hook 1000m workover rig
225 tonnes 4 - 5 sheaves Single hook 2000m drilling rig
350 tonnes 5 - 6 sheaves Single hook 4000m drilling rig
500 tonnes 6 sheaves Single hook 7000m drilling rig
750 tonnes 6 - 8 sheaves Heavy duty hook 9000m+ drilling rig

Frequently Asked Questions

Can I use a different brand hook with my existing traveling block?

Technically yes, but you need to verify the mounting dimensions. The critical dimensions are: pin hole diameter, pin hole center-to-top-of-block distance, and the width of the hook's upper bail. If these match, the hook will bolt on. But you should also verify the load rating is the same (or lower) than the block. Using a higher-rated hook on a lower-rated block doesn't help —the block is still the weak link. Best practice: if you're replacing the hook, replace it with the same brand and model as the original. If you're buying from us, we'll match the hook to your existing block specification.

How do I inspect a block and hook assembly?

Annual inspection (or every 2,000 hours, whichever comes first) should include: visual inspection of the block body for cracks or distortion, sheave groove wear measurement (replace if groove is worn more than 10% of original diameter), hook latch operation test, pin and bushing wear check, and load test proof (if required by your local regulation). Between major inspections, the driller should visually check the block and hook every tour for obvious damage, leaks (from the hook's accumulator if equipped) or unusual wear. Keep an inspection log with dates and findings.

What's the difference between a standard hook and a swivel-mounted hook?

A standard hook hangs straight down from the block. The swivel (which carries the drilling fluid hose) sits in the hook's latch. A swivel-mounted hook has a bearing assembly that allows the hook (and swivel) to rotate freely. This is useful if you're rotating the drill string while running in —the swivel can turn with the string without twisting the kelly hose. Most modern rigs use a hook with an internal swivel bearing. Older hooks are rigid. If you do a lot of rotating while running pipe, get the swivel-bearing hook.

Need a Block and Hook Assembly?

Tell us your required hook load rating, number of line parts, and preferred brand standard (API or equivalent). We'll supply a matched, certified assembly ready to run on your rig.
