Derrick Block: The Classic Sheave System for Traditional Rigs

If you're working with an older rig —the kind with a four-legged K-type derrick, not a modern front-opening mast —you're probably looking for a derrick block. It's the traditional name for the sheave assembly at the top of a derrick: the fixed set of sheaves that the drilling line runs over. Same function as a crown block, but the mounting geometry, frame design and sheave arrangement are different. We supply replacement derrick blocks for legacy rigs, matching the original mounting pattern and sheave configuration so you don't have to modify the derrick itself.

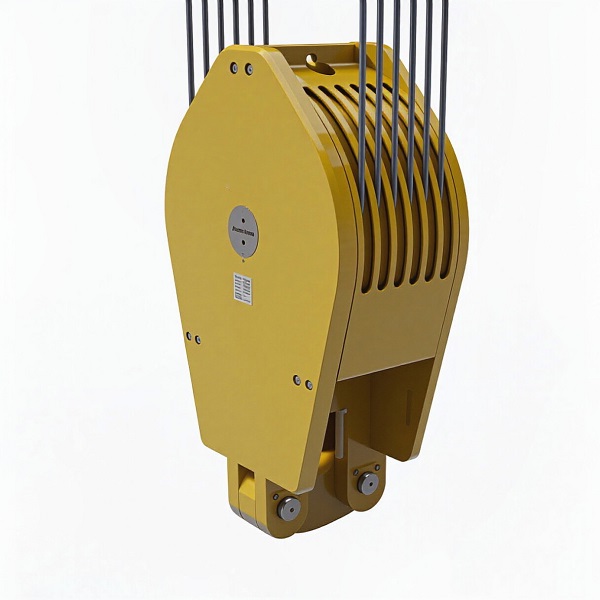

Derrick block on conventional drilling rig

Derrick Block vs Crown Block: What's the Difference

They do the same job, but the terms refer to different rig designs:

Derrick Block Crown Block
Rig type Conventional K-type derrick (4 legs) Modern front-opening mast (2 legs)
Mounting Bolted to the derrick's top section Integrated into the mast head frame
Frame design Traditional cast or welded frame Modern welded frame, lighter weight
Typical era 1960s - 1990s rigs 2000s - present new builds
Sheave count 4 - 6 sheaves (older designs) 4 - 8 sheaves (wider range)

The key point: if you're replacing the sheave assembly on an older rig, you need a derrick block that matches the original derrick's mounting pattern. Don't try to fit a modern crown block on an old derrick —the bolt holes won't line up, and the structural support isn't designed for it.

When to Replace a Derrick Block

Oderrick blocks on legacy rigs often run for decades. Here's when replacement is necessary:

  • Sheave Wear: When the sheave grooves are worn beyond 10% of original diameter, or the groove profile is no longer a proper semicircle. The rope won't seat properly and will wear rapidly.
  • Bearing Failure: When sheaves start to seize or run rough. Worn bearings create heat, vibration and uneven rope wear. Usually not worth rebuilding on an old block —replace the whole assembly.
  • Frame Damage: Cracks, distortion or corrosion on the block frame. If the frame is compromised, the whole assembly is unsafe. This is a "replace now" situation, not a "monitor" situation.
  • Upgrade Opportunity: If you're already rebuilding the derrick or upgrading the rig, it's a good time to replace the derrick block with a modern design. We can design a replacement that fits the original derrick's mounting pattern.

Typical Derrick Block Replacement Options

Rating Sheaves Line Size Typical Original Rig
150 tonnes 4 28 mm (1-1/8") API 150 workover rig
225 tonnes 4 - 5 32 mm (1-1/4") API 200 / 225 drilling rig
350 tonnes 5 - 6 35 mm (1-3/8") API 300 / 350 drilling rig
500 tonnes 6 38 mm (1-1/2") API 450 / 500 drilling rig

Frequently Asked Questions

Can I replace individual sheaves on a derrick block, or do I need to replace the whole block?

It depends on the block design. On older derrick blocks where the sheaves are individually mounted on bearings in the frame, you can replace individual sheaves. The problem is finding replacement sheaves that match the original dimensions, bore size and sheave diameter. For most legacy rigs, the original manufacturer is out of business, and aftermarket sheaves are hard to find. In practice, it's often faster and cheaper to replace the whole derrick block assembly. We can supply a replacement block that matches your derrick's mounting pattern.

How do I measure my existing derrick block to get a replacement?

You need three key measurements: (1) mounting hole pattern —the bolt hole spacing and number of holes on the block's mounting base, (2) sheave count and sheave diameter, and (3) overall frame dimensions. Take photos from multiple angles. If you can read the original manufacturer's nameplate, that helps. Send us the measurements and photos, and we'll either supply a direct replacement or design a compatible alternative. Most replacement derrick blocks are custom-built to match the original mounting pattern.

Can I upgrade to a higher-rated derrick block on my existing rig?

Not without verifying the derrick structure. The derrick itself is rated for a certain static load. If you install a higher-rated block, you're not actually increasing the rig's lifting capacity —the derrick legs and substructure are still the limit. You can replace the block with one of the same rating (for wear), or you can upgrade the whole derrick and substructure. Don't just bolt a bigger block onto a smaller derrick and expect more capacity. Get a structural analysis first.

Need a Replacement Derrick Block?

Send us your derrick block's make, model and mounting dimensions. We'll supply a replacement that fits your legacy rig and meets API 8C standards.
