High Pressure | High Horsepower

Fracturing Pump for Hydraulic Fracturing Operations

A fracturing pump is the heart of a hydraulic fracturing spread. It delivers high-pressure, high-rate fluid to create and propagate fractures in the reservoir. Modern frac pumps range from 2000 to 5000 hydraulic horsepower, with working pressures up to 140 MPa.

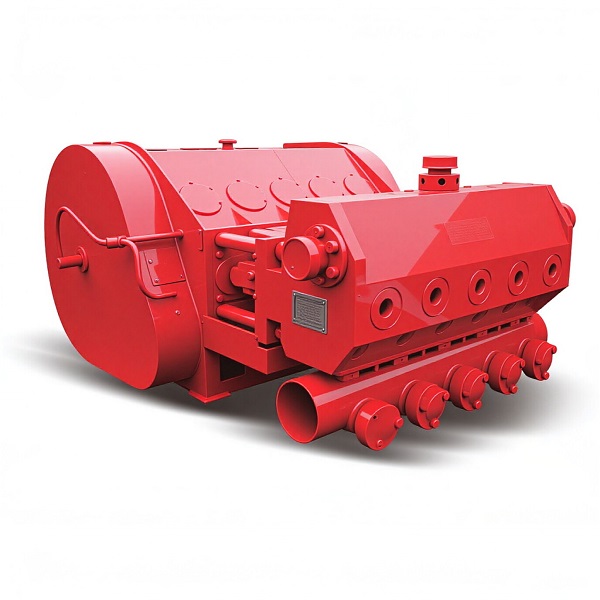

High pressure fracturing pump truck

How a Fracturing Pump Works

A fracturing pump is a reciprocating positive displacement pump that converts hydraulic power into high-pressure fluid flow. Here is the operating principle:

1. Power Transmission

A diesel engine or electric motor drives a crankshaft through a transmission and gear reduction system. The gearbox multiplies torque while reducing speed to the required pump RPM.

2. Plunger Reciprocation

The crankshaft drives plungers back and forth in fluid end cylinders. On the suction stroke, low-pressure fluid enters the cylinder. On the discharge stroke, fluid is expelled at high pressure.

3. Valve Operation

Suction and discharge valves open and close automatically with pressure differential. Each plunger has its own set of valves, ensuring continuous flow even as individual cylinders cycle.

Fracturing Pump Model Range

Our fracturing pump lineup covers the full range from 2000 HHP for medium-rate jobs to 5000 HHP for large-volume shale gas fracturing.

Model Power Rating Working Pressure Max Flow Rate Fluid End
SJF2000 2,000 HHP (1,490 kW) 105 MPa (15,200 psi) 1.6 m³/min Triplex / Quintuplex
SJF2500 2,500 HHP (1,865 kW) 105 MPa (15,200 psi) 2.0 m³/min Quintuplex
SJF3000 3,000 HHP (2,240 kW) 120 MPa (17,400 psi) 2.4 m³/min Quintuplex
SJF4000 4,000 HHP (2,985 kW) 140 MPa (20,300 psi) 2.8 m³/min Quintuplex
SJF5000 5,000 HHP (3,730 kW) 140 MPa (20,300 psi) 3.2 m³/min Quintuplex (dual)

Triplex vs Quintuplex Fluid Ends: Which Is Better?

Fracturing pumps use either triplex (3 plunger) or quintuplex (5 plunger) fluid ends. Each design has tradeoffs:

Factor Triplex (3 Plunger) Quintuplex (5 Plunger)
Flow Smoothness More pulsation, lower flow per cycle Smoother flow, reduced pulsation
Maximum HHP Up to 2,500 HHP typical 3,000 - 5,000 HHP
Plunger Size Larger plungers, fewer parts Smaller plungers, more parts
Maintenance Simpler, fewer valves to replace More valves but smaller individually
Weight Lighter per HHP Heavier but higher flow per unit
Best For Older spreads, medium-rate jobs Modern high-rate shale gas fracturing

Where Fracturing Pumps Are Used

Shale Gas Fracturing

Large-scale shale gas development requires 10-20 frac pumps running in parallel. Total HHP spreads of 20,000-50,000 HHP are typical for multi-well pad development.

Tight Oil Fracturing

Tight oil reservoirs require medium-rate fracturing with higher sand concentration. Frac pumps must handle proppant-laden fluid with minimal wear.

Coal Bed Methane (CBM)

CBM fracturing typically uses lower pressure but large fluid volumes. Multiple smaller pumps working in parallel are common.

Carbonate Matrix Acidizing

Acidizing operations use frac pumps to deliver acid at high rate and pressure. The fluid end must be acid-resistant (Hastelloy or coated).

Engineering Advantages of Our Frac Pumps

API 6A Certified Fluid Ends

All fluid ends are designed and tested to API 6A specifications. Pressure containing components are hydrotested to 1.5x working pressure before shipment.

Replaceable Valve Cartridges

Our valve design allows quick replacement of suction and discharge valves without removing the fluid end from the pump. Reduces maintenance time on location.

Wear-Resistant Fluid Path

For proppant-laden service, we offer tungsten carbide coated plungers and valve seats. This extends component life by 2-3x compared to standard chrome plating.

Data Acquisition & Control

Each frac pump includes a control system that monitors pump speed, discharge pressure, flow rate and engine parameters. Data is logged for post-job analysis.

Modular Power Transmission

The gearbox and transmission are modular units that can be removed and replaced in the field. No need to pull the entire pump for transmission service.

Field Service Support

Our engineers provide commissioning, operator training and troubleshooting. Critical wear parts are stocked in regional warehouses for fast delivery.

Frequently Asked Questions About Fracturing Pumps

How many frac pumps do I need for a typical shale gas well?

A typical shale gas fracturing stage requires 15-25 m³/min total flow rate. If each pump delivers 2.0 m³/min, you need 8-12 pumps running in parallel. Most modern spreads use 10-15 pumps total, with 1-2 spare for redundancy.

What is the difference between hydraulic horsepower and engine horsepower?

Engine horsepower (BHP) is the rated output of the diesel engine. Hydraulic horsepower (HHP) is the actual fluid power delivered to the wellhead. Due to mechanical losses in the transmission and pump, HHP is typically 85-90% of BHP. When people talk about "2500 HHP frac pumps," they mean 2,500 hydraulic horsepower at the wellhead.

How long do frac pump fluid ends last in proppant service?

Standard fluid ends in sand-laden service typically last 200-400 hours before major overhaul. With tungsten carbide coated parts and optimized flow paths, this can extend to 800-1200 hours. Valve seats and plungers are the highest-wear items and may need replacement every 100-200 hours.

Can I convert an old frac pump from diesel to electric drive?

Technically yes, but it's a major modification. The diesel engine, transmission and fuel system are replaced with an electric motor and VFD drive. The pump fluid end and gearbox can often be reused. Contact us with your pump model and we can evaluate the conversion feasibility.

What is the typical lead time for a new fracturing pump?

Standard configuration frac pumps take approximately 8-10 months from order confirmation. Custom configurations (electric drive, special materials, climate packages) may require 10-12 months. Refurbished or near-stock units can be delivered in 60-90 days.

Planning Your Fracturing Spread?

Tell us your target flow rate, treating pressure and well type. Our engineering team will recommend the optimal pump configuration and provide a detailed quotation for your complete spread.
